How To Build a Portable Toolbox w/ Insert Tray for Travel

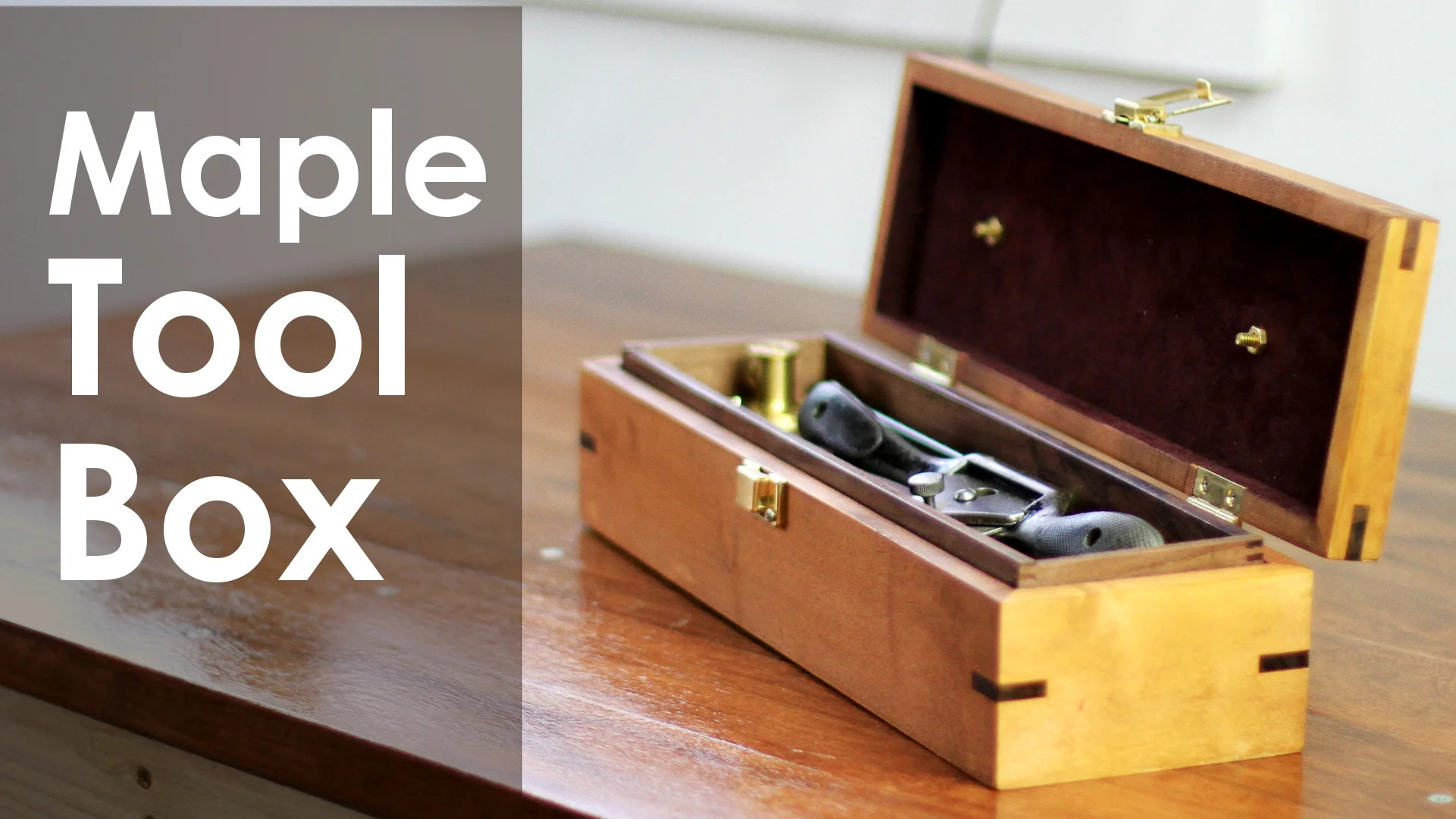

This box is made out of maple with walnut splines and it has a walnut tray insert. Originally I designed it for art supplies, but as I started to work on it, I thought it would be just perfect as a travel box for hand tools. That's not to say however that it wouldn't be a great box to hold any supplies! Boxes are just so much fun to make, and this one would be perfect to hold any special things.
Here's the idea for this project. A simple box, with an inset top and bottom. Mitered corners and splines. To create a lid, the box is cut in two. Let's open it up. Inside the box we have a nice fitting tray that sits in the middle.
I started with running a maple board through the planer to get them nice and smooth. Then I resawed the wood and cut the pieces to size.
So these are the pieces I need for the main box, and these are pieces for the lid.
Next I'm routing the long and the short sides through the router with a 1/4 inch bit so I can insert the top and the bottom. So the bottom will sit flush, whereas the top will be inset a little bit.
Now for the lid I've got a couple of thin pieces of maple I'm cutting up here and I'm just going to laminate them together to create one piece. And adding a little clamping power from all sides so it sets up right.
OK, so time to assemble the box. So I'm putting down some glue in the routed grooves, and then I'm simply putting all the pieces together. So that looks good. Then holding the box in place with some clamps as the glue dries.
Next to add some strength to the box, I'm going with splines. So the first step is adding the holes, and I'm using a spline jig for the router here. And I decided to add two splines on each sides, one will be inside the lid, and one will be in the main body.
Now, for the splines, I went with walnut. Love the contrast there. So cutting them up to size and then gluing them in, a little light tapping, sanding at times if they're a touch too thick and repeat.
To make my life a little easier, I opted for cutting off the excess wood on the band saw and then sanding the sides down flush.

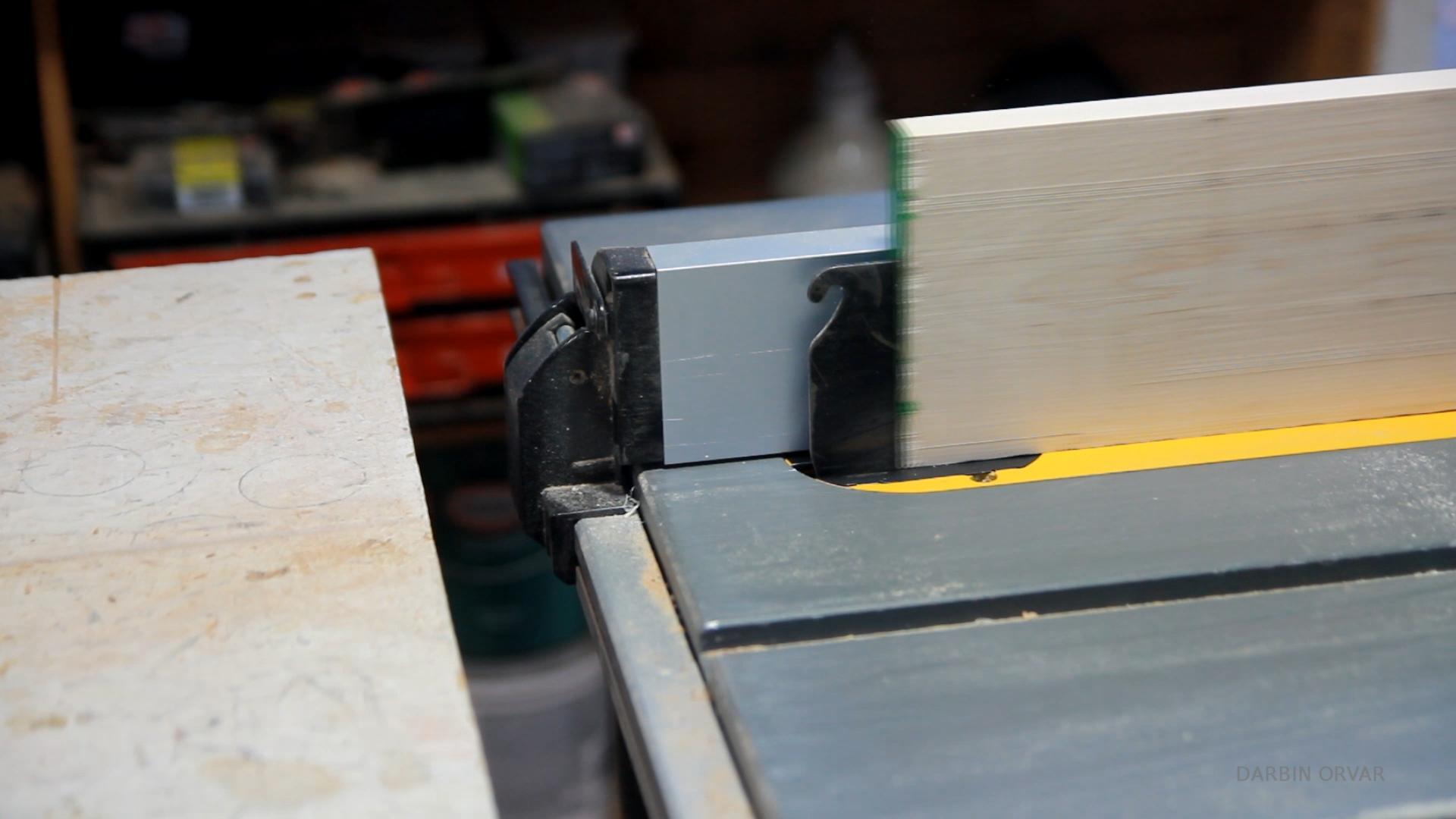

Once the splines were cut and sanded, I cut the box in half on the table saw. I was really careful here, and cut one side at a time. And there you have it, a top and a bottom. Love this technique.
Now, let's move on to the tray. These are the pieces I need, a bottom, and then the sides. Cutting a groove with the router so the bottom can sit flush. To connect this box I decided to use my box joint jig. So these are really small joints, simply the width of the blade with is 1/8 inch. And there you can hear the rain, outdoor shop. And then just fitting the pieces together.
So time to glue the tray together, and I'm simply adding some glue to the joints here and the grooves, and making a little box. Clamping everything in place, and wait to dry.
Then doing a little sanding to get everything nice and smooth.
OK, so time to put everything together. In order for the tray to be able to sit inside the box, I've got some thin maple here, that I'm cutting to size. Seeing how this would work. Looks good. And then let's make sure the lid will fit, ok. So then just gluing in the sides, adding some clamps and letting it set up.
Then sanding the tray and the box, and removing any dried glue.
Now, I love the look of the maple and the walnut, however I really wanted this box to feel a little vintage, with a bit more character. Which is why I decided to add some light cherry dye to the box.
Then to seal the wood, I'm adding a coat of dewaxed shellac everywhere. Now shellac is one of my favorite finishes in general, however the main reason why I added it here, is because the next step is flocking and when you add flocking, you need to seal the wood first so the glue doesn't get absorbed into the wood.
So taping off the sides here, and then I'm going outside, because this stuff is not water based and has a strong smell. So flocking is made up of two parts - the glue and the fibers, both of which should be the same color. This is the color wine.
So you brush on the glue, I used a disposable china bristle brush. Then I placed the box in a plastic bag inside a cardboard box and shot the fibers out with this flocking canister. And here it's a good idea to over do it, since you can capture any extras later on in the bag. Then I left that to dry for a couple of days, before shaking off the excess and removing the tape. So let's try it with the tray. OK, looks good.
Now let's move on to the hardare. So I've got a couple of nice hinges, so I'm measuring out where they should go, and how for deep they should sit, and then carefully chiseling the wood out of the box and the tray. And when you're dealing with small parts to chisel out like this it's just a good idea to take your time. And cleaning it up a little with a shoulder plane. Making sure it fits.
Then I'm using a self centering bit to drill the holes, and then screwing in the hinges.
Once that was in place I measured out the space for the clasp. Just finding the center, drilling some holes, and screwing the clasp in.
Now to finish the box, this time I'm going with a wipe on gel polyurethane. This is pretty thick stuff and goes on really nicely. I'm just putting it on with a cloth here, and total I put on two coats of this. Also coating the tray, and this should add some nice protection.
For this box I have this gorgeous leather handle I actually removed one layer of the leather because I thought it was a little thick for this small box. Here you can see the metal attachments that you're supposed to attach the leather to the wood with, like for a trunk. But I thought the metal was a little too large for this box, so time to think of some other solution. Instead I drilled some holes in the leather, and got some beautiful brass screws. I also drilled some holes in the box.
But before putting it together, I decided to add some wax polish to the box and the leather here, and this is simply to add some protection, plus it darkens the leather just a touch.
Then I attached the leather to the box, with the screw and securing with a nut on the other side. And I must say, I really like the brass popping there against the maroon flocking. Then putting in the tray, closing the box, and it's done.
