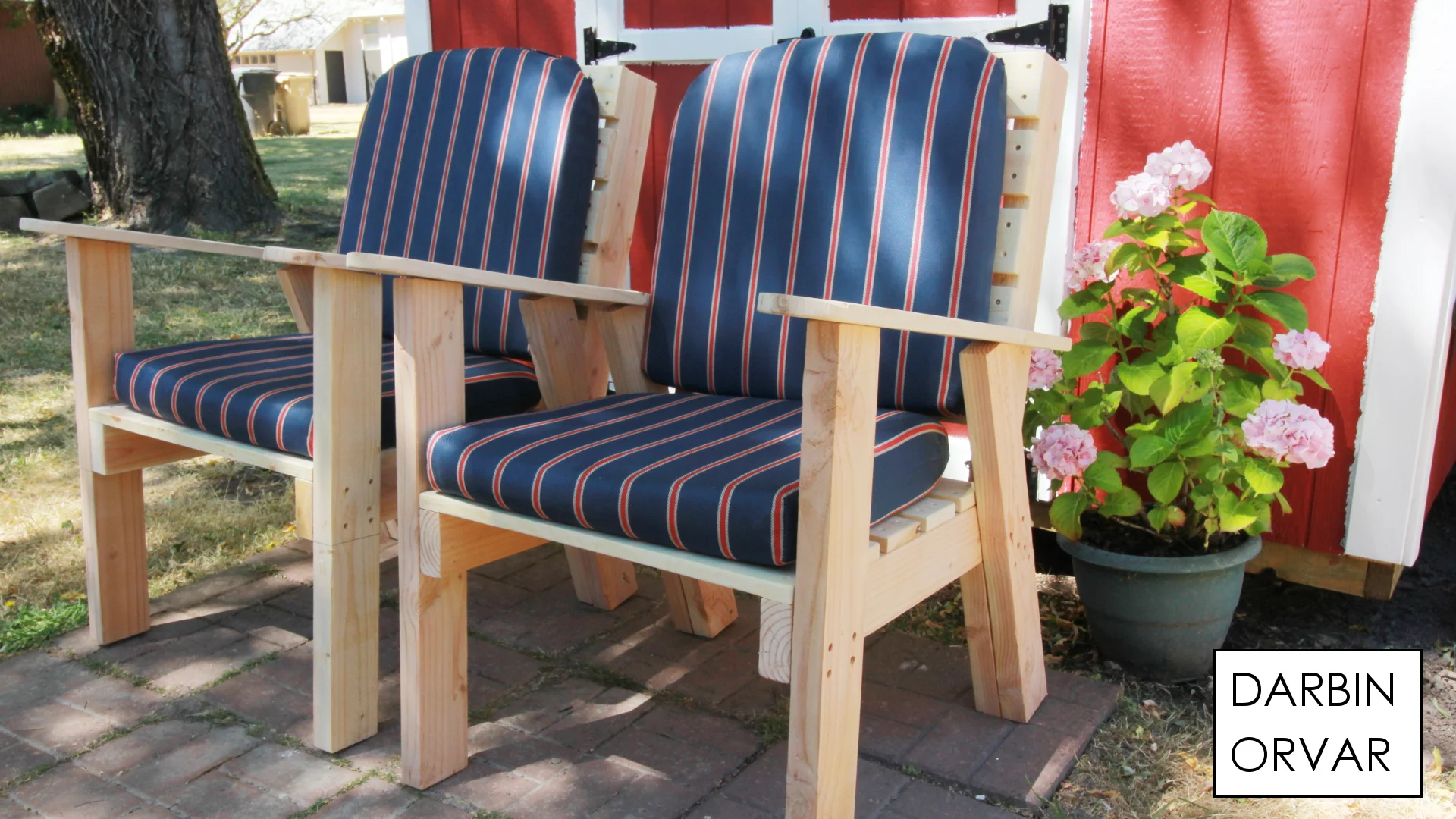

Making Chairs

These chairs are designed to be easily assembled and put together with just mostly 2 1/2" screws. The outdoor chairs are made of cheap framing lumber and pine.

Cut List
(Pieces are 2 x 4 framing lumber unless noted)

Front Legs - 27" long angled 78 degrees to 26 3/8"
Back Legs - 24 1/4" long, 23 1/2" on short side
 78 degrees on bottom
 114 degrees on the top
Short Back Legs - 11 1/2" 78 degree parallelogram
Seat - 25" long
Back - 28" long
Seat & Back intersect @ 75 degrees & trim excess
Slats - 10 pieces @ 22" long - use 1" x 4"
Arm Rests  - 2 pieces @ 30" long - use 1" x 4"
